RYLTEC 2200

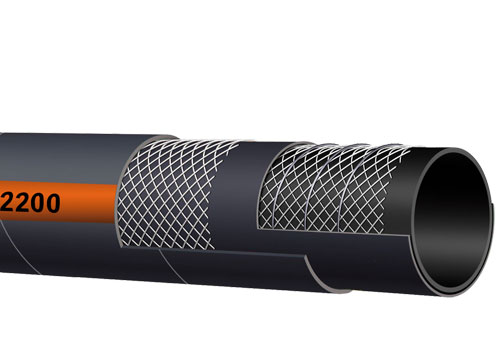

NBR rubber mandrel hose with textile reinforcement steel wire spiral.
- Hose for hydrocarbon suction and propulsion, unloading trucks, fuel transfers with a maximum aromatic content of 50%, and oils in return line circuits.
- Standard length: Available in 40m lengths up to Ø 51mm and in 20m lengths from Ø 60mm onwards.
- Temperature: -30°C to +70°C
- WP: 16 bar ISO1307
- Marking: RYLTEC 2200 FUEL & OIL SUCTION AND DISCHARGE - WP 16 BAR (240PSI) - Ref. Ø
| Item | Code | Ø (mm) |
|---|---|---|
| C313019 | 3167 | 19x30 |
| C313025 | 3416 | 25x36 |
| C313030 | 3412 | 30x40 |
| C313032 | 3413 | 32x42 |
| C313035 | 3400 | 35x46 |
| C313038 | 3401 | 38x49 |
| C313040 | 3402 | 40x51 |
| C313045 | 3403 | 45x57 |
| C313051 | 3404 | 51x64 |
| C313060 | 3405 | 60x74 |
| C313070 | 3407 | 70x85 |
| C313076 | 3408 | 76x91 |
| C313080 | 3409 | 80x97 |
| C313090 | 3410 | 90x104 |
| C313102 | 3411 | 102x117 |
| C313152 | 3414 | 152x168 |
